Namur Actuator

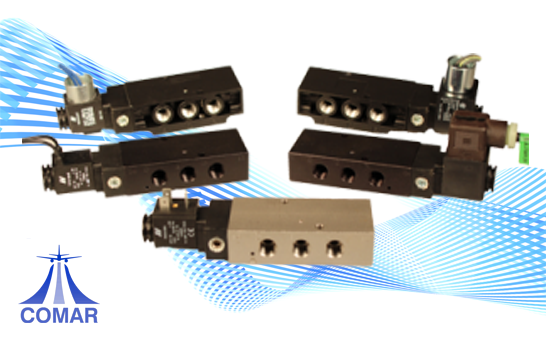

Namur Actuator Solenoids

Back to Products

Valves :

Proven design with over 20 years OEM experience.

Many options available to meet your requirements including:

  • Explosion proof and intrinsically safe operators
  • Stainless Steel
  • Fluoroelastomer Seals
  • Easily converted from 4 way to 3 way operation
  • Specific application needs? Consult Comar.



We can have it built for you.



Tapered Tee-Seal.......Eats Dirt



Bidirectional tapered Tee-Seal eliminates sticking problems.

  • Flexes to clean spool
  • Mechanically Locked
  • No Spiral Twist
  • No Extrusion
  • Air Line Sediment is Wiped Away.



Tested tough and proven reliable according to SAE specifications:

Rust and water injected every 864,000 cycles for 20 million cycles.

Solednoid... Guaranteed Against Burnout

  • Three-way pilot uses full airline pressure to shift the valve.
  • Pilot is internally supplied when the pressure at port one is 35 to 150 PSIG (240 to 1030 kPa).
  • Coil is hermetically sealed as an integral watertight molded unit.
  • Intrinsically-safe and explosion-proof versions available.
  • Push Non-Locking Override is standard. (Extended Turn and Turn-Locking available)



Products Certified To :

  • CSA - (C22.2 and UL STD 429)
  • Factory Mutual - Explosion Proof Environments
  • ATEX - Explosion Proof Environments
  • CE - EMF and Low Voltage Directives
Find Out How We Can Help You
Sales: 01902 383 000
